Custom Webhook

If your openHAB setup does not support the JSON-based REST API for sending commands, you can configure a custom Webhook using the Webhook binding instead.

Follow the steps below to set it up:

---

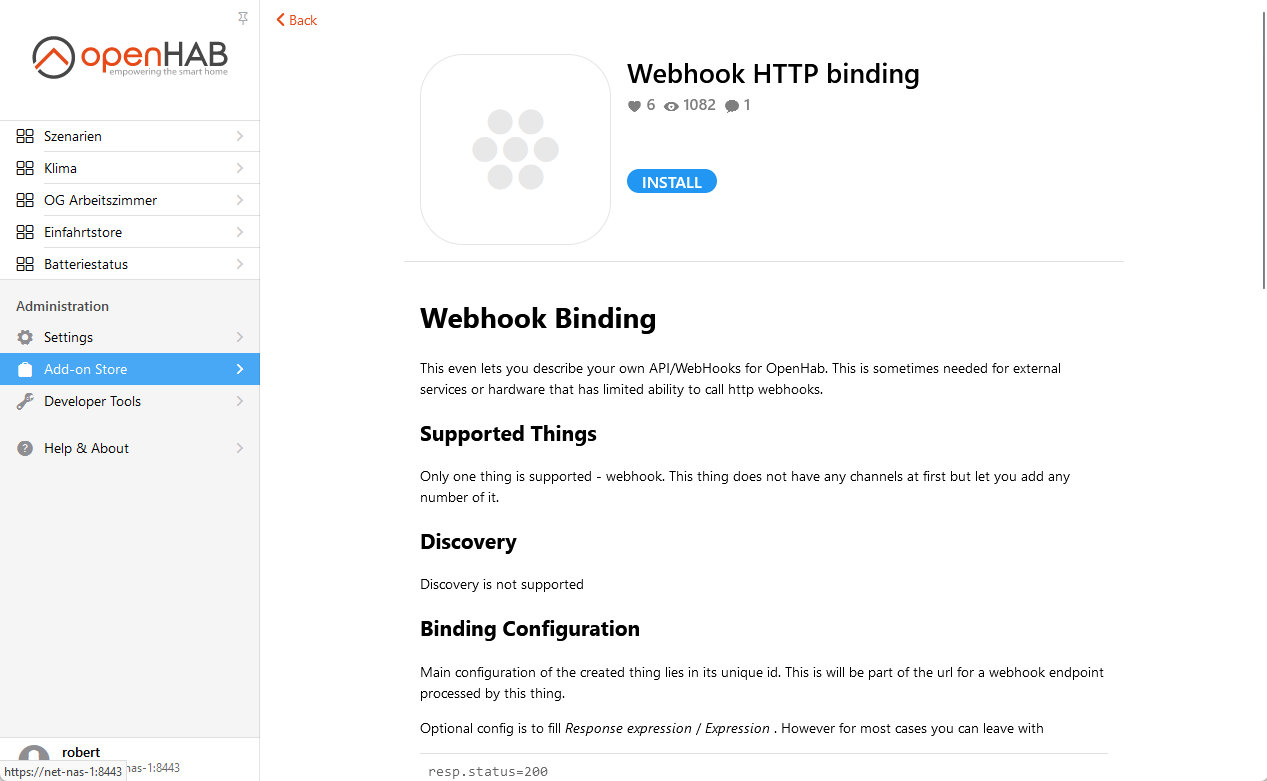

1. Install the Webhook Binding

Install the Webhook HTTP binding.

---

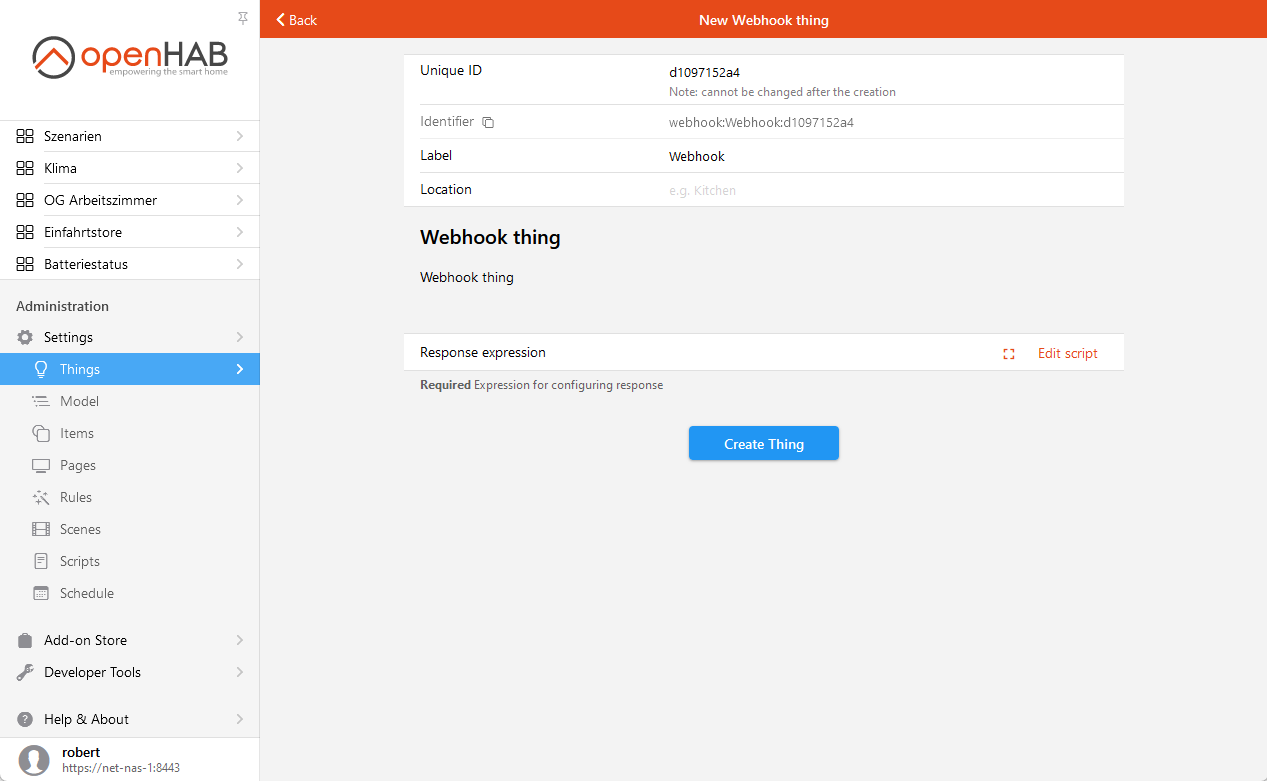

2. Create a Webhook Thing

Create a new Webhook Thing.

Go to the Code tab and enter the following YAML (replace UID with your own):

UID: webhook:Webhook:d1097152a4
label: Webhook
thingTypeUID: webhook:Webhook
configuration:
  expression: resp.status=200

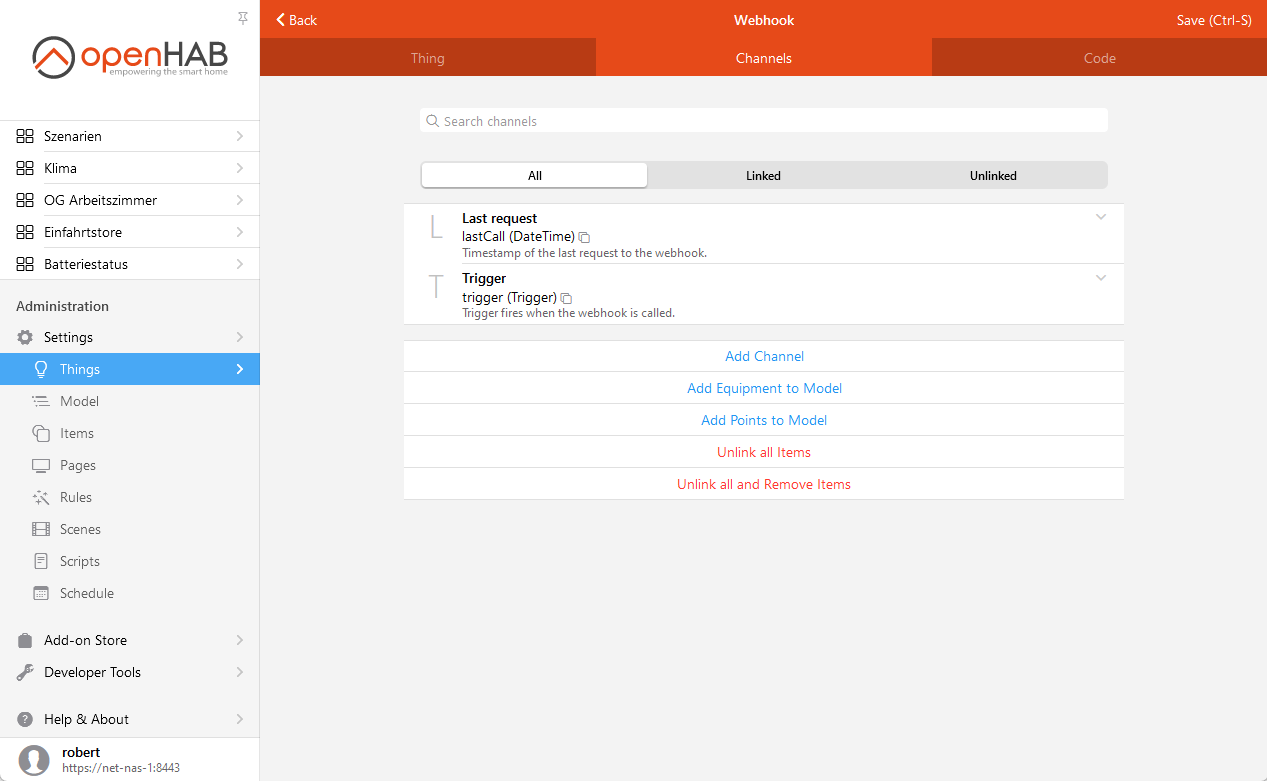

channels:
  - id: lastCall
    channelTypeUID: webhook:lastCall-channel
    label: Last request
    configuration: {}
  - id: trigger
    channelTypeUID: webhook:trigger-channel
    label: Trigger
    configuration:
      expression: >-
        {
          var gson = new("com.google.gson.Gson");
          var jsonRoot = {:}; var jsonBody = {:};
          if (!empty(req.body.text)) jsonBody.put("text", req.body.text);
          if (!empty(req.body.json)) jsonBody.put("json", req.body.json);
          jsonRoot.put("parameters", req.parameters);
          jsonRoot.put("body", jsonBody);
          jsonRoot.put("method", req.method);
          return gson.toJson(jsonRoot);
        }

---

3. Create a Rule with JavaScript

Create a Rule that triggers on webhook and runs this JavaScript:

var request = JSON.parse(event.event);

var action = request.parameters.action?.[0] ?? null;
var itemName = request.parameters.itemName?.[0] ?? null;
var command = request.parameters.command?.[0] ?? null;

if (action === "sendCommand") {
  if (itemName && command) {
    items.getItem(itemName).sendCommand(command);
  } else {
    console.warn(`Webhook: sendCommand missing parameters (itemName='${itemName}', command='${command}')`);
  }
} else if (action === "toggle") {
  if (itemName) {
    var item = items.getItem(itemName);
    item.sendCommand(item.state === "ON" ? "OFF" : "ON");
  } else {
    console.warn(`Webhook: toggle missing itemName`);
  }
} else {
  console.warn(`Webhook: invalid or missing action '${action}'`);
}

Parameter	Description
action	"sendCommand" or "toggle"
itemName	Name of the item to control
command	Command to send (for sendCommand)

---

4. Test & Connect

You can test the webhook by visiting:

https://yourserver:yourport/webhook/d1097152a4?action=toggle&itemName=LightBedroom

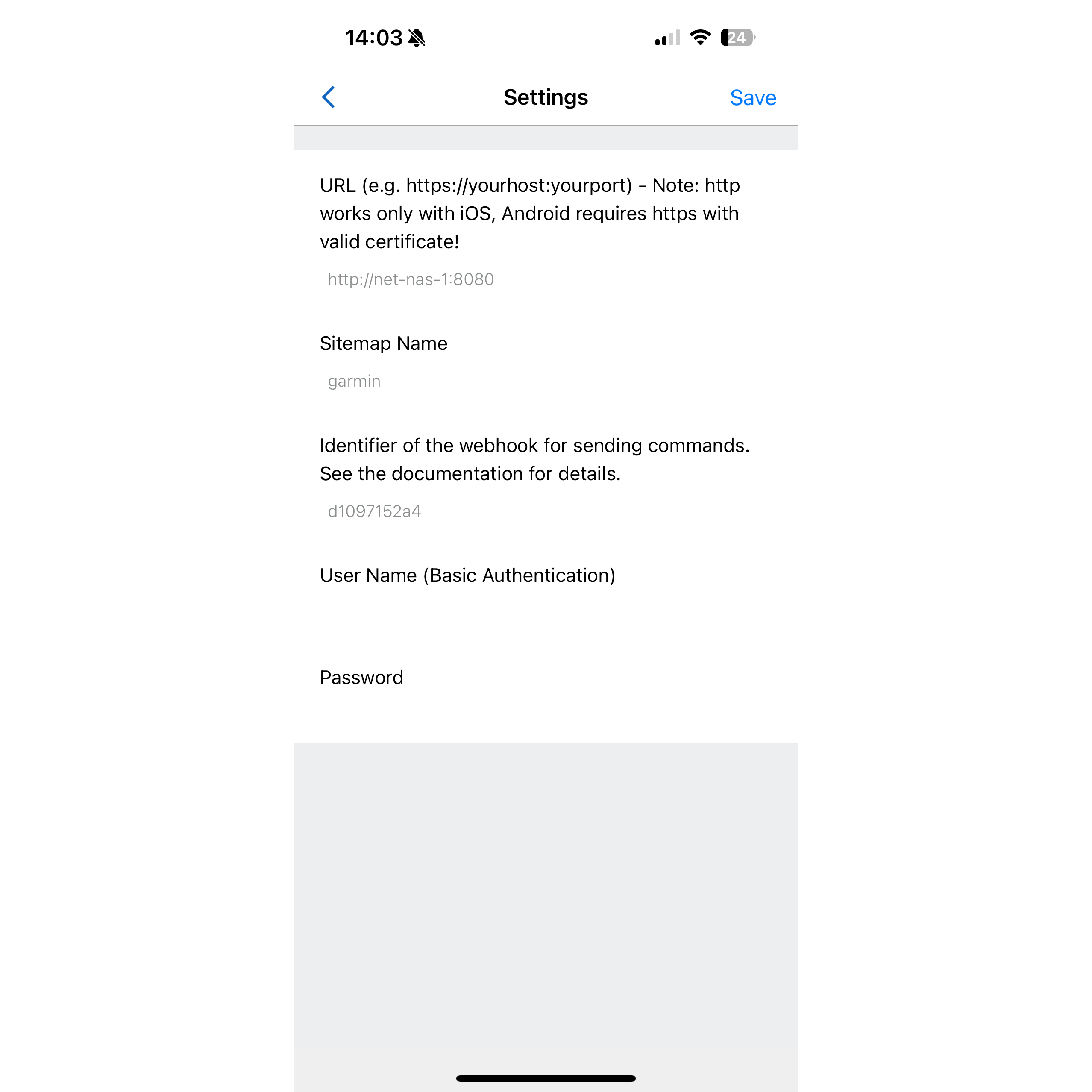

Then enter the Webhook ID (d1097152a4) in the app settings:

---
